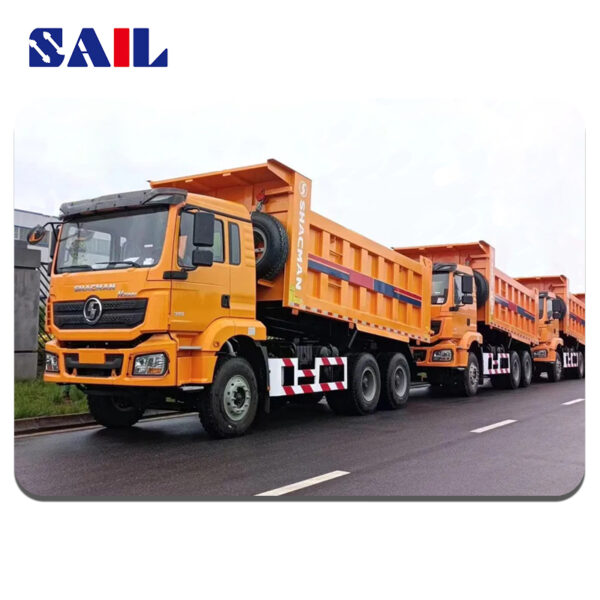

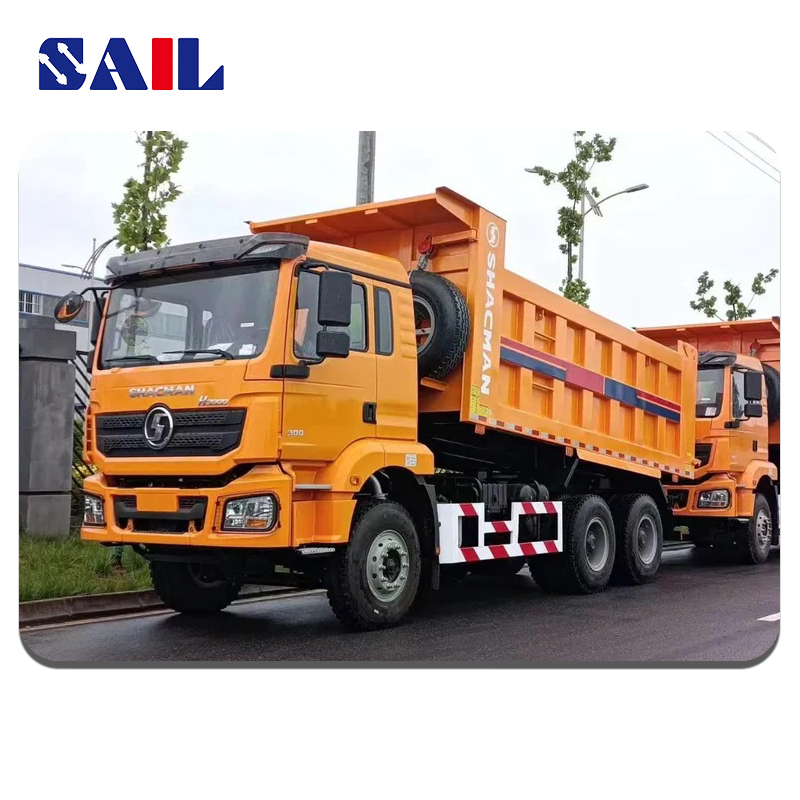

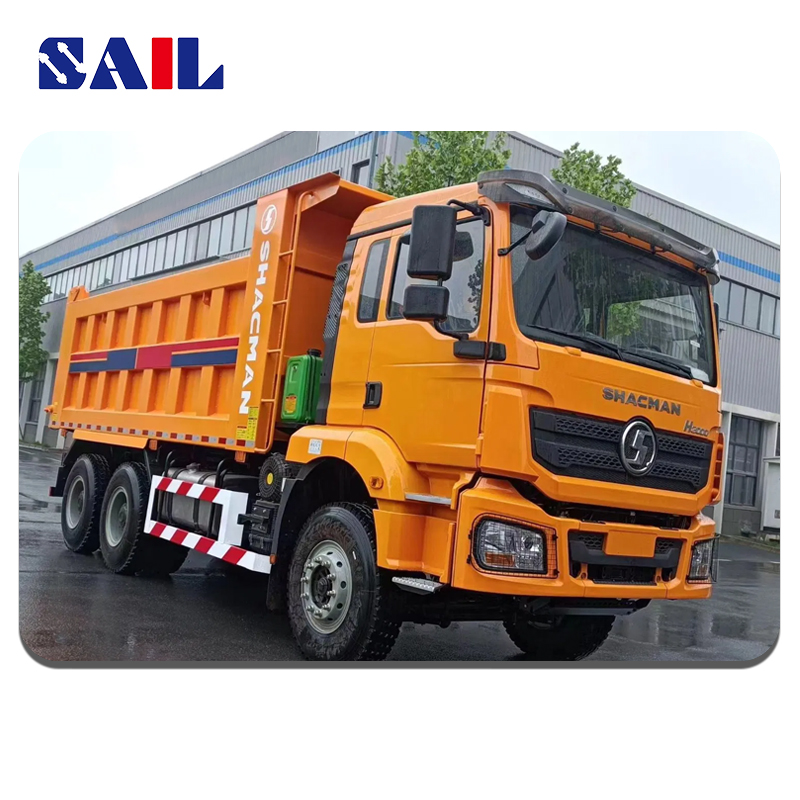

SAIL Used SHACMAN X3000 6X4 Dump Truck
-
The SHACMAN X3000 6×4 Dump Truck is a powerful and reliable vehicle designed for heavy-duty transport tasks such as mining, construction, and bulk material handling. Equipped with high-performance Weichai or Cummins engines (up to 430 HP), FAST manual transmission, and a reinforced MAN axle system, it ensures excellent power, durability, and load capacity. Its spacious X3000 cab offers comfort with air suspension, air conditioning, and modern controls, making it ideal for long hours of operation in demanding environments.
"*" indicates required fields
General Specifications
-
Model: SX32556T404
-
Drive Type: 6×4
-
Wheelbase: 3975 + 1400 mm
-
Dimensions (L×W×H): Approximately 7950 × 2490 × 3270 mm
-
Gross Vehicle Weight: 13,400 kg
-
Loading Capacity: 30–40 tons
-
Maximum Speed: 75 km/h
Engine Options
-
Weichai WP10.380E22
-
Power: 380 HP (279 kW)
-
Displacement: 9.726 L
-
Emission Standard: Euro II
-
Weichai WP12.400E201
-
Power: 430 HP
-
Emission Standard: Euro II
-
-
Cummins ISME420
-
Power: 420 HP
-
Emission Standard: Euro III
-
-
Transmission
-
Models: FAST 10JSD160 or 12JSD180 manual transmissions
-
Clutch: 430 mm diameter
-
-
Chassis & Suspension
-
Frame Dimensions: 850 × 300 mm (8+7 mm)
-
Front Axle: MAN 9.5-ton capacity
-
Rear Axle: MAN 16-ton double reduction with a ratio of 5.262
-
Suspension: Multi-leaf springs on both front and rear
Fuel & Tires
-
Fuel Tank: 360–400 liters (aluminum alloy)
-
Tire Options: 12.00R20, 12.00R22.5, or 315/80R22.5
Cargo Body
-
Capacity: 15–20 cubic meters
-
Typical Dimensions: 5600 × 2300 × 1500 mm
Cabin Features
-
Cab Type: X3000 high-roof sleeper cab with air suspension
-
Standard Features: Air conditioning, air suspension driver’s seat, multifunction steering wheel
