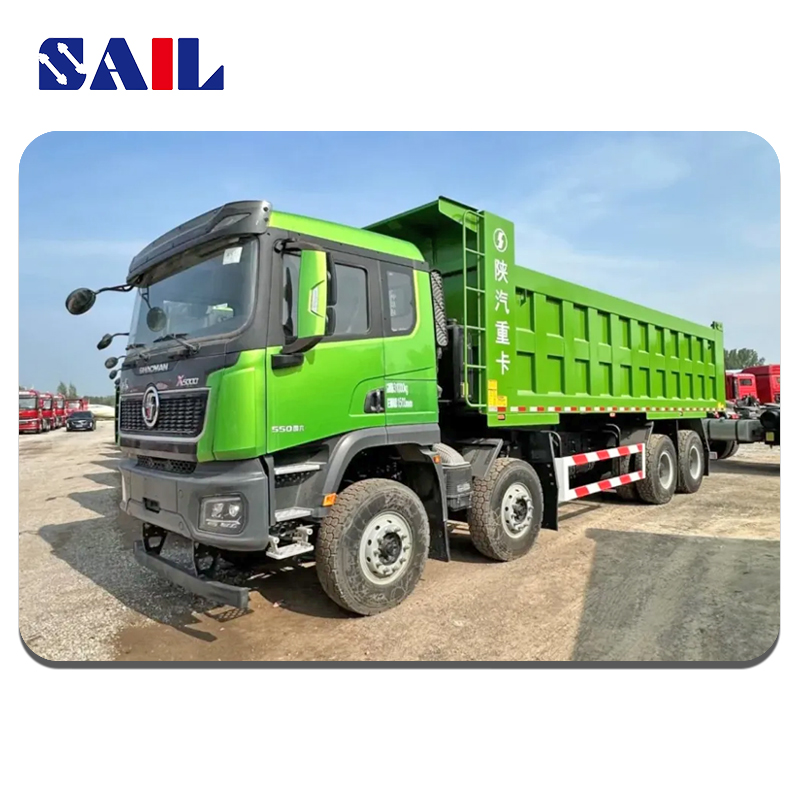

Basic Information
-
Model: SX3319XD426
-
Drive Type: 8×4 (front four, rear eight)
-
Wheelbase: 1950 + 4025 + 1400 mm
-
Chassis Dimensions: 850 × 300 mm (8+7 mm reinforced)
-

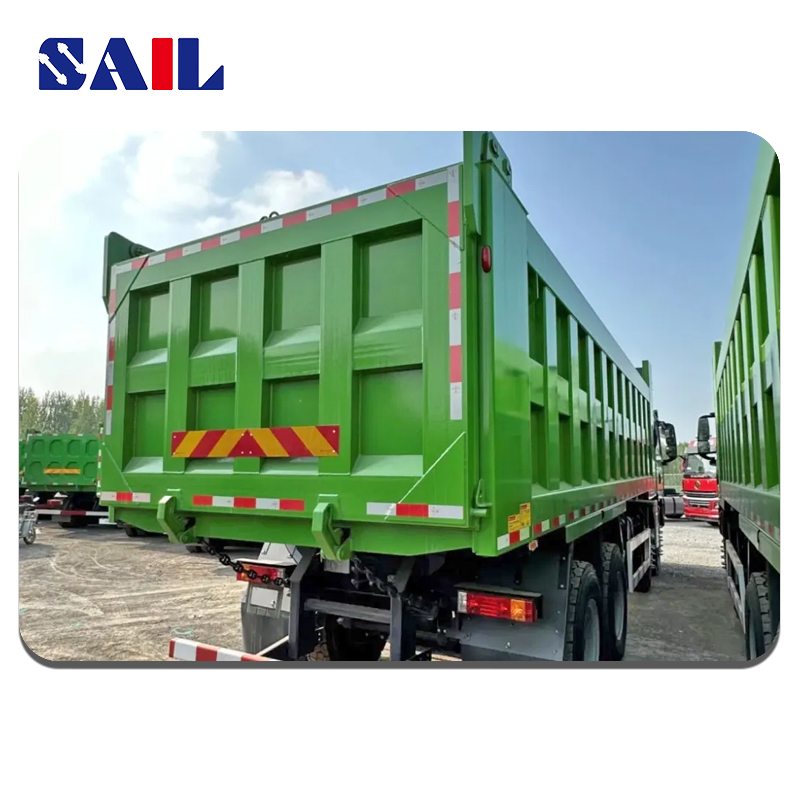

Cargo Box Length: 8.6 meters (other options: 6.2m, 8m available)
-
Curb Weight: Approx. 18.6 tons
-
Fuel Type: Diesel
-
Emission Standard: China VI
Powertrain
-
Engine: Weichai WP13.550E62
-
Max Power: 405 kW / 550 HP
-
Max Torque: 2550 N·m
-
-
Transmission: Fast Gear 12JSD200T-B, Manual 12-speed
-
Rear Axle Ratio: 5.262
Chassis & Suspension
-
Front Axle: MAN 9.5-ton drum brake axle
-
Rear Axle: MAN 16-ton dual-stage cast wide axle (tandem)
-
Suspension: Multi-leaf spring (4 main + 4 auxiliary)
-
Tires: 13R22.5 (front: mixed pattern, rear: mining tires), 12 units
-
Fuel Tank Capacity: 400L aluminum alloy tank
Cabin & Comfort
-
Cab Type: High-roof sleeper cab with dual bunks and 4-point air suspension
-
Driver Seat: Air suspension seat
-
Features:
-
Multifunction Steering Wheel
-
Automatic Air Conditioning
-
Power Windows
-
Electrically Adjustable & Heated Mirrors
-
Central Locking with Remote Key
-
Safety & Smart Features
-
Braking System: ABS (Anti-lock Braking System)
-
Smart System: Optional Tianxingjian Smart Version — supports remote fleet management, fuel monitoring, fault alerts, and more
