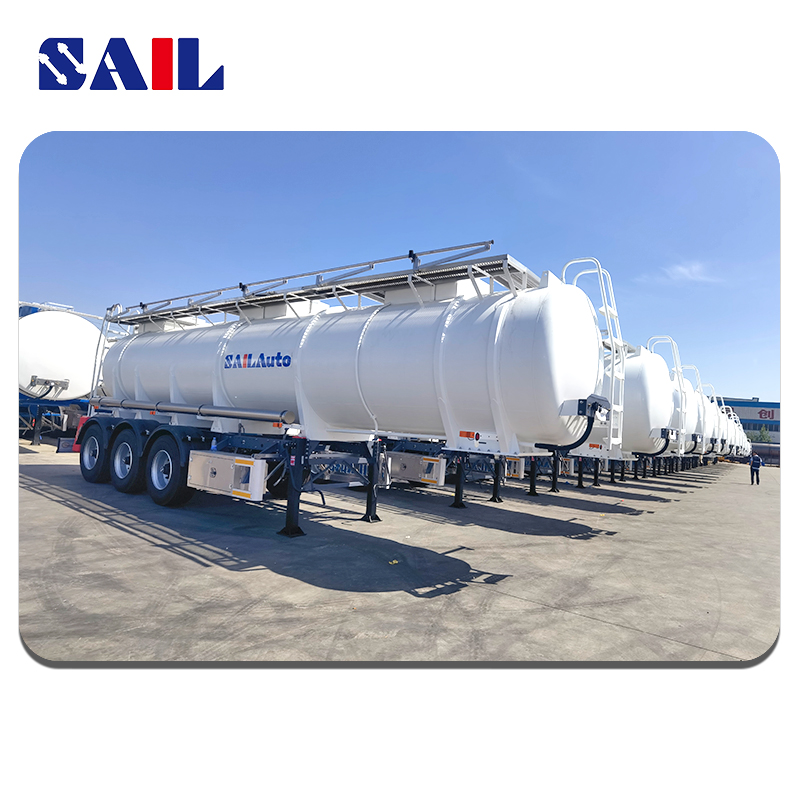

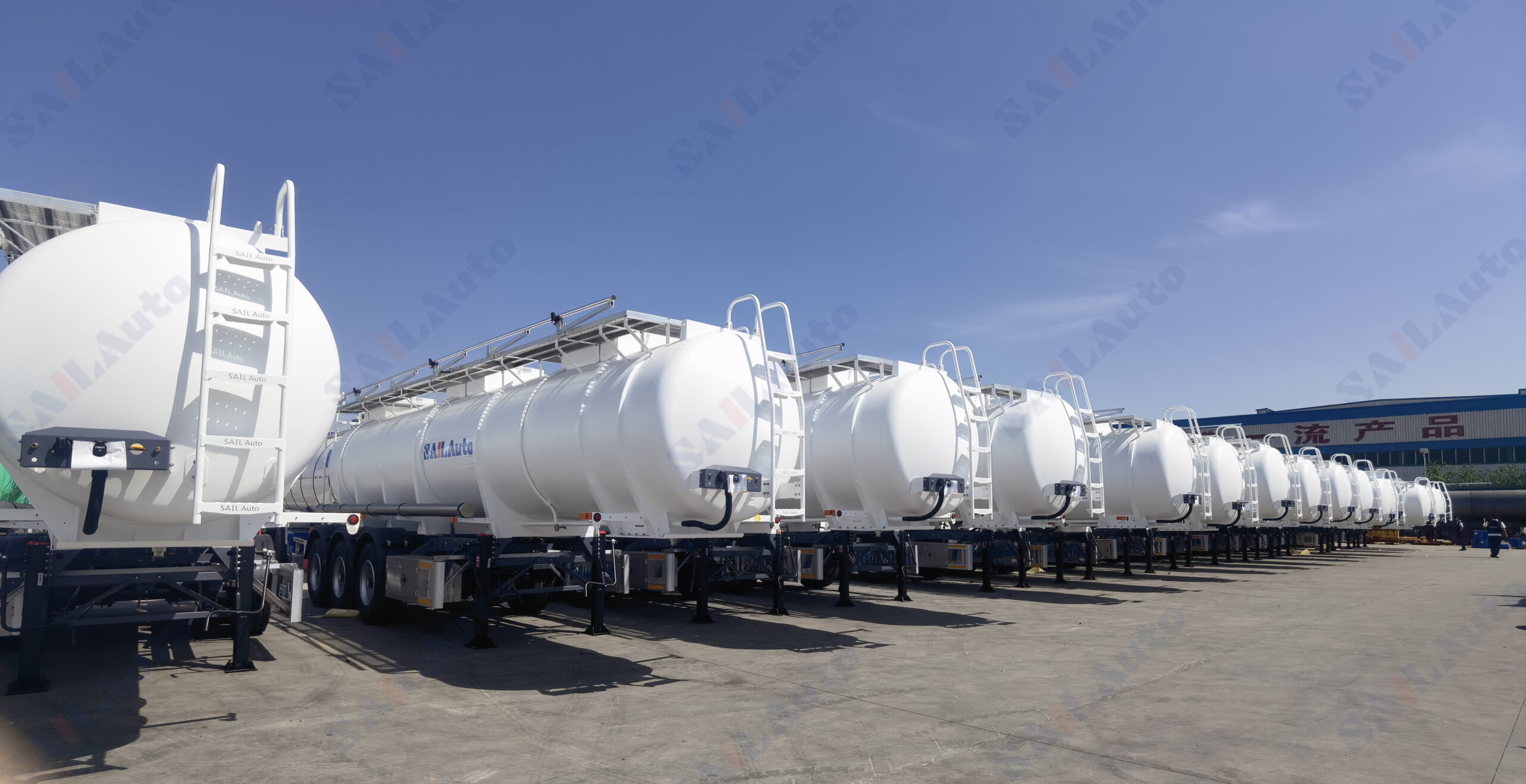

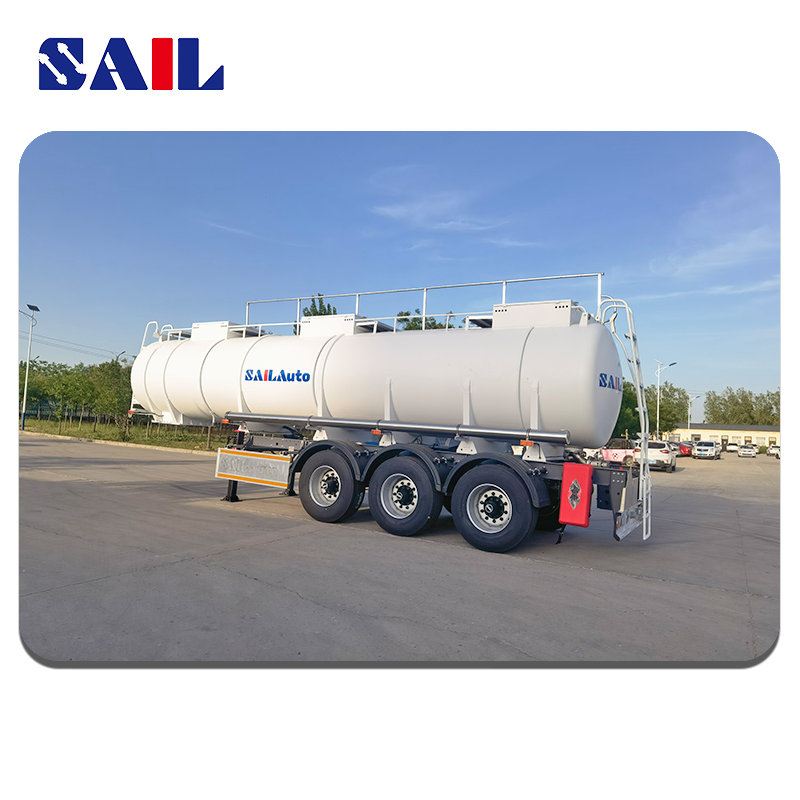

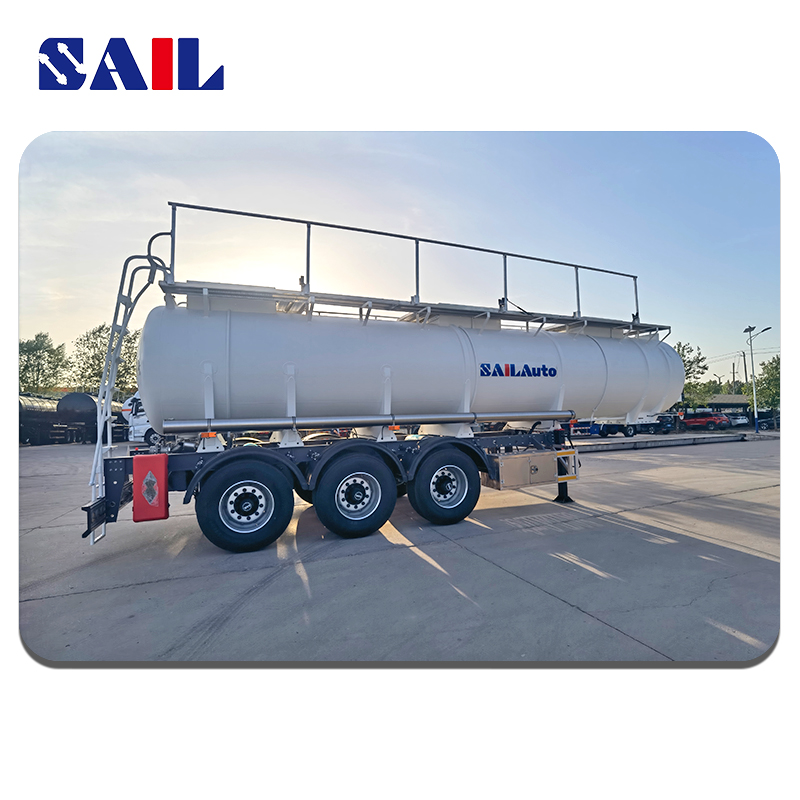

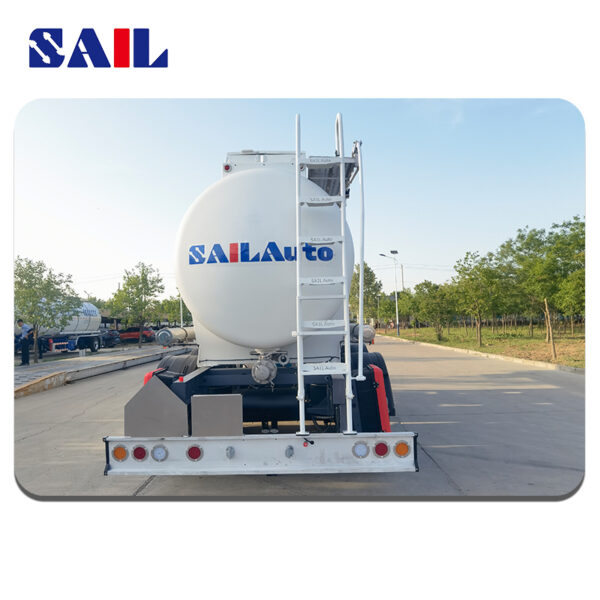

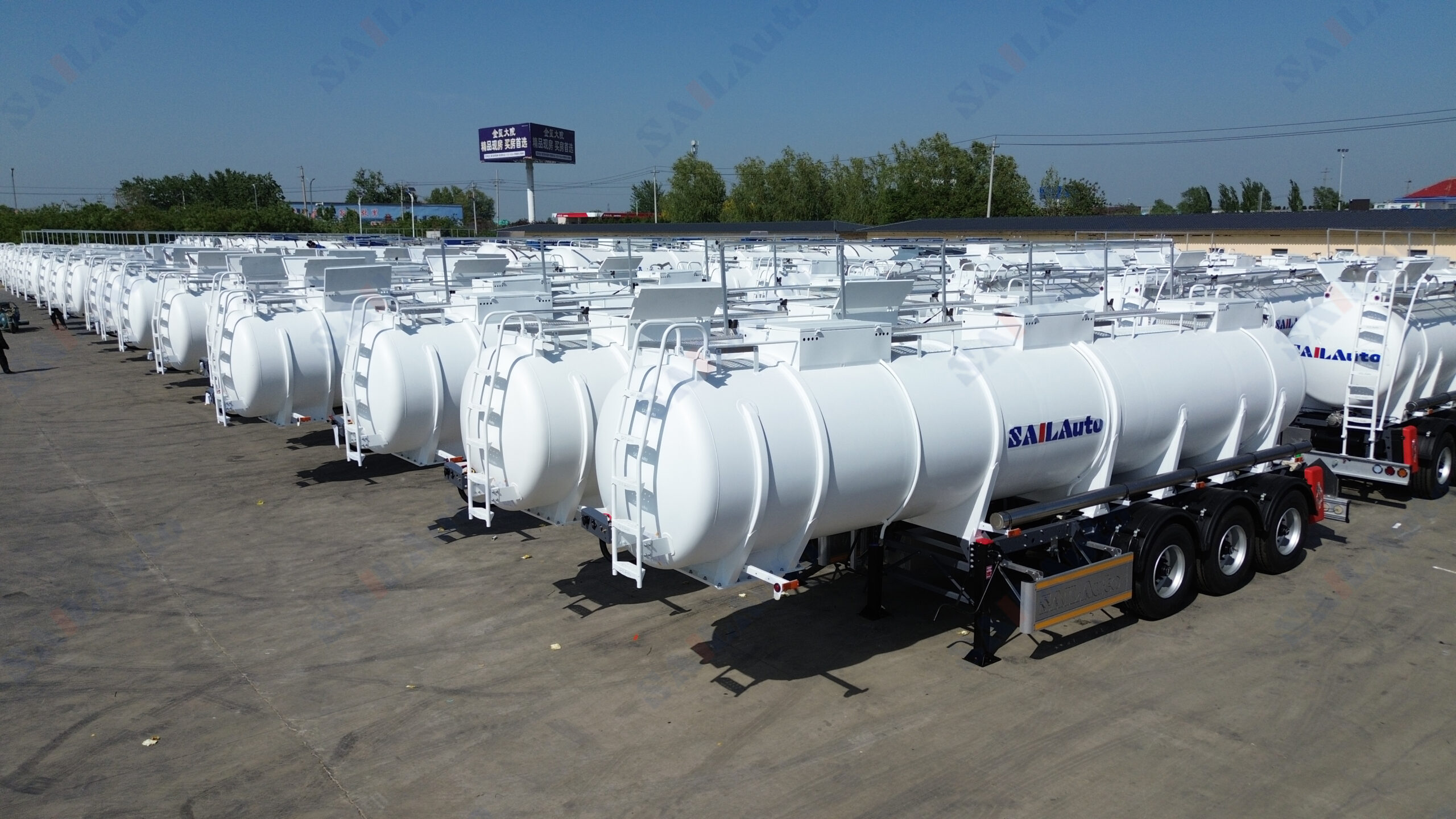

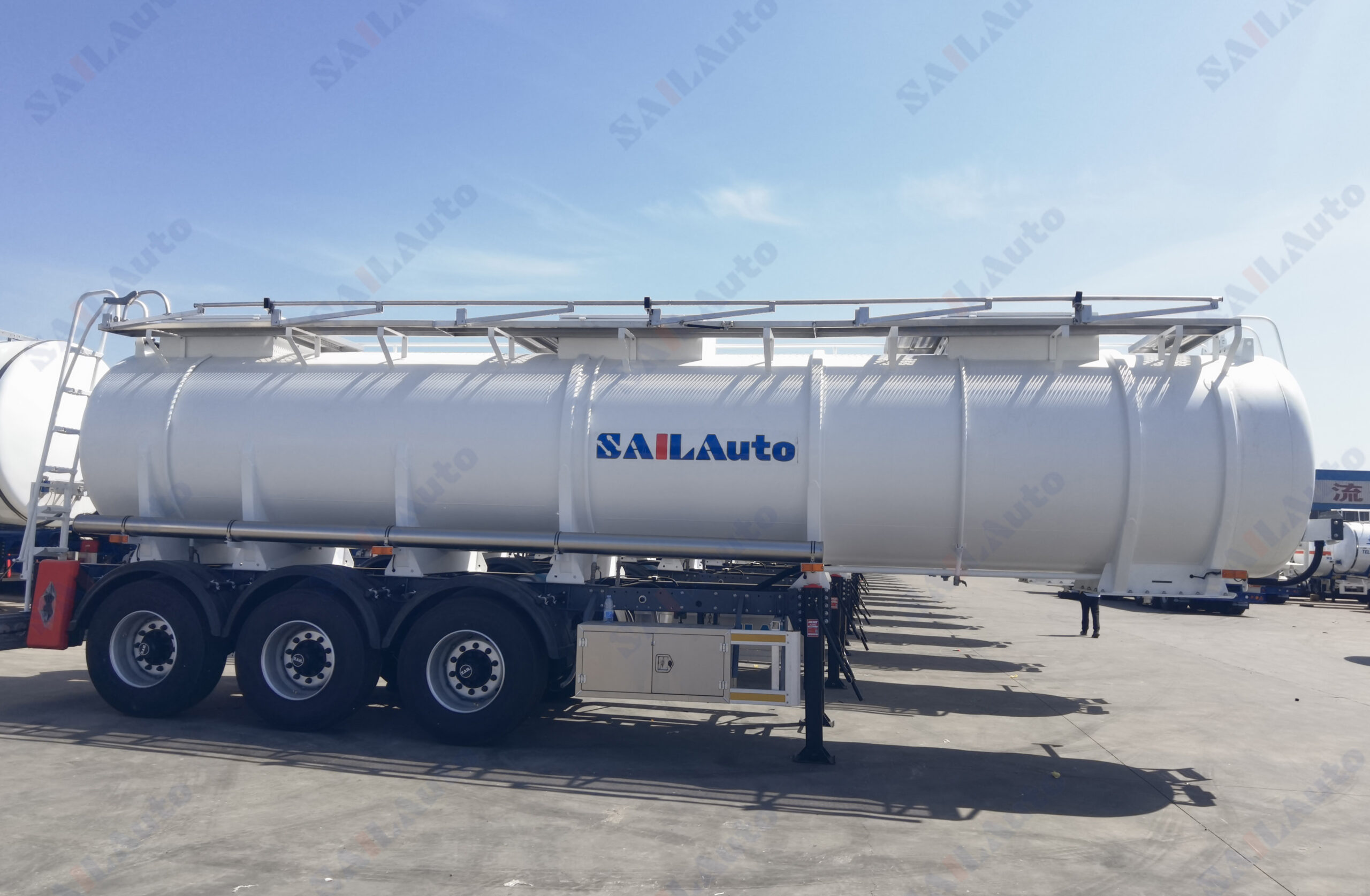

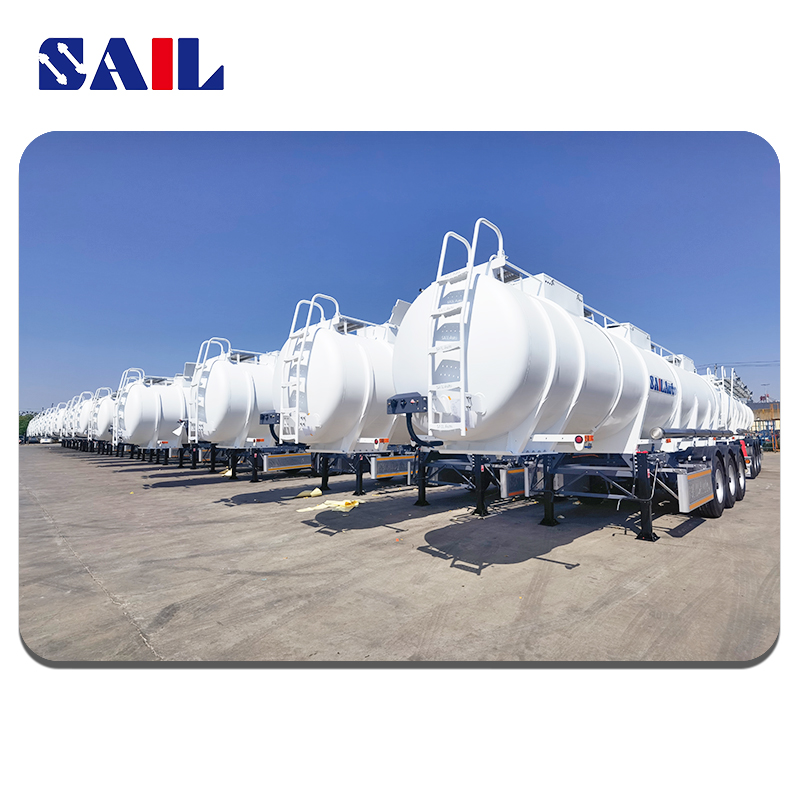

SAIL 23CBM Stainless Steel Chemical Liquid Tanker Trailer for Acid Transport

SAIL supplies a full range of tanker trailers, including fuel tanker trailers, heavy bitumen tanker semi-trailers, and chemical tanker semi-trailers for sulfuric acid and other corrosive liquids.

For the hydrochloric acid tanker, SAIL uses a reinforced acid-resistant tank body to ensure safety. The tank is constructed with 5 mm thick steel plates, and features a special structural design with 10 reinforced steel rings to enhance the strength of the dilute sulfuric acid tanker trailer.

To ensure the safety of nitric acid transport, we equip the tanker with a stainless steel emergency bottom valve and corrosion-resistant discharge valves. This design offers excellent anti-corrosion performance, extending the service life of the chemical tanker trailers.

Advantages of SAIL Chemical Tanker Trailer:
1.Equipped with safety devices: Features an explosion-proof large manhole cover and a bottom emergency shut-off valve to ensure operational safety.
2.High-precision automatic welding: The tank body is welded using advanced large-scale automatic welding equipment, ensuring strong and uniform seams.
3.Longitudinal welding design: The entire tanker body is longitudinally welded, enhancing structural integrity and extending service life.
4.Leak-proof testing system: Each trailer undergoes a water-filled pressure test to verify high sealing performance and prevent any oil leakage.
5.(Corrected numbering) Internal wave breakers: The waved board design minimizes liquid impact and improves driving stability.
6.Durable paint system: Finished with an advanced polyurethane coating, offering a beautiful appearance and a service life of over 5 years.
7.Reliable branded components: We use well-known brand parts to reduce maintenance costs and ensure long-term durability.

Specification of SAIL Chemical Tanker Trailer

• Overall Dimensions: 11,500 mm × 2,500 mm × 3,700 mm

• Transport Medium: Sulfuric acid

• Manhole Cover: Stainless steel manhole cover

• Bottom Valve: Aluminum API pneumatic bottom valve

• Axles: 3 axles

• Suspension: Heavy-duty mechanical suspension

• Tires: 12 units

• Discharging Pipe: 4″ rubber hose, 6 meters per piece, 2 pieces

• King Pin: 2” or 3.5” interchangeable

• Landing Gear: JOST brand

• Brake System: Dual-line pneumatic brake system

• Electrical System: 24V, 7-pin receptacle, LED lights, compliant with Chinese standard
